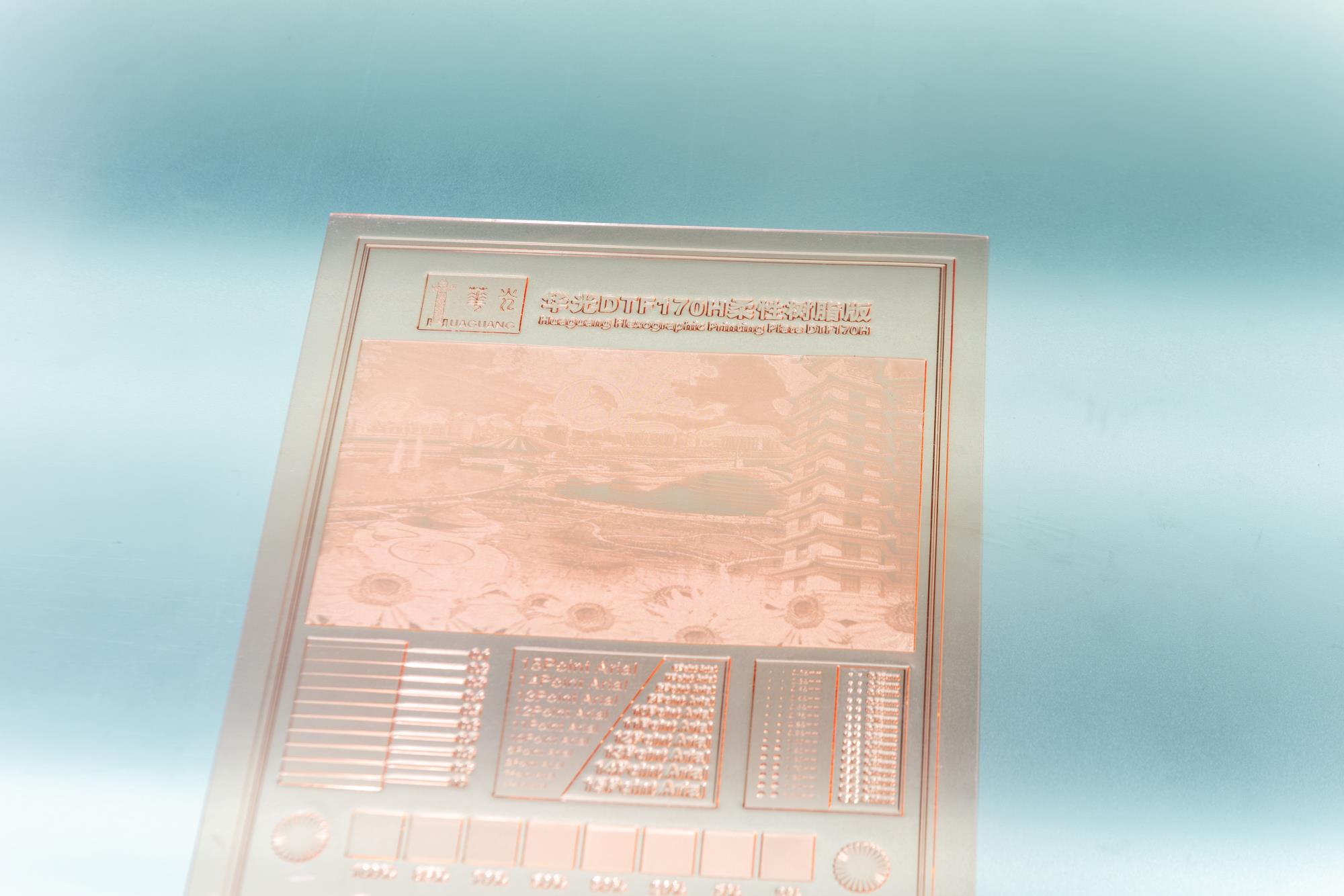

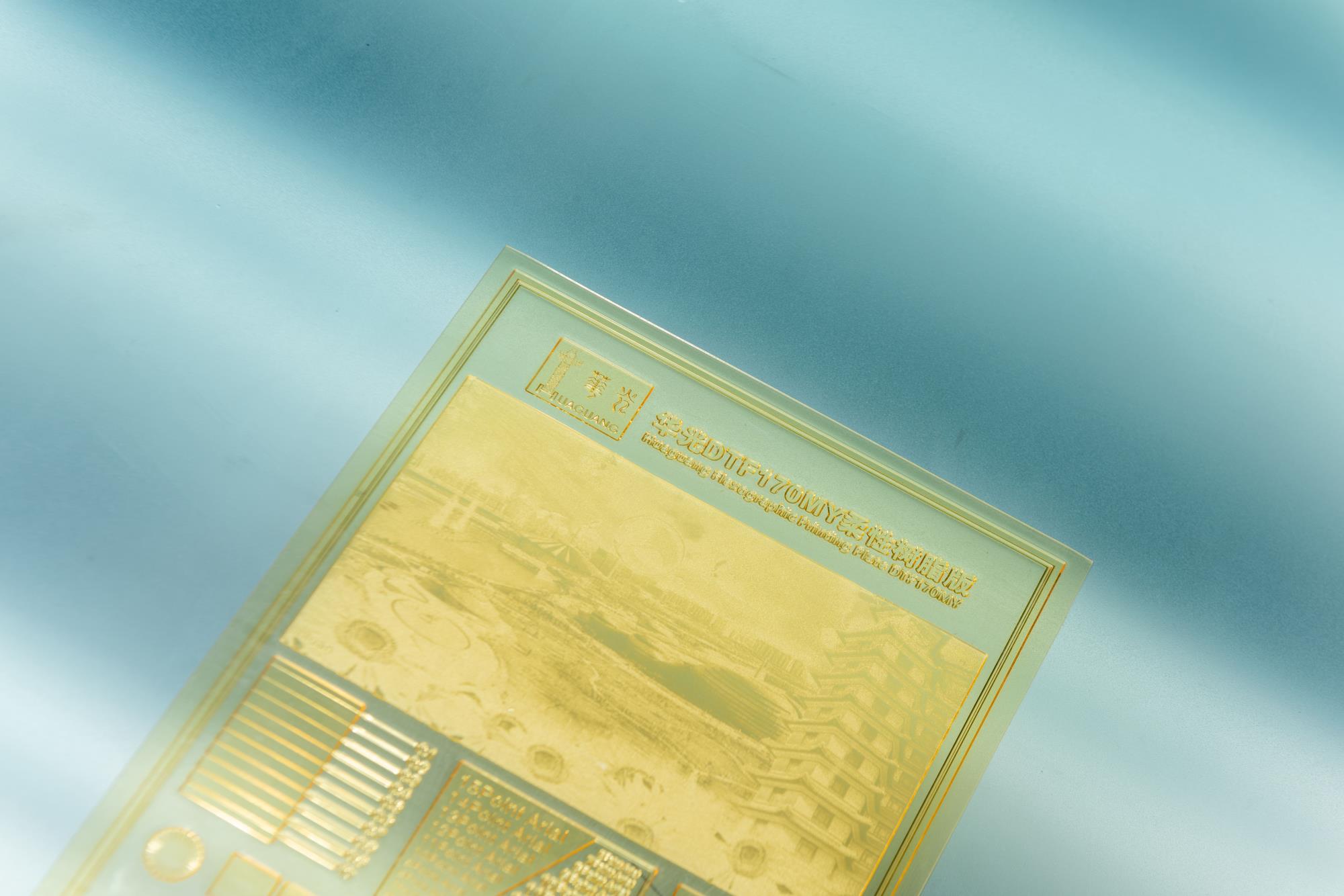

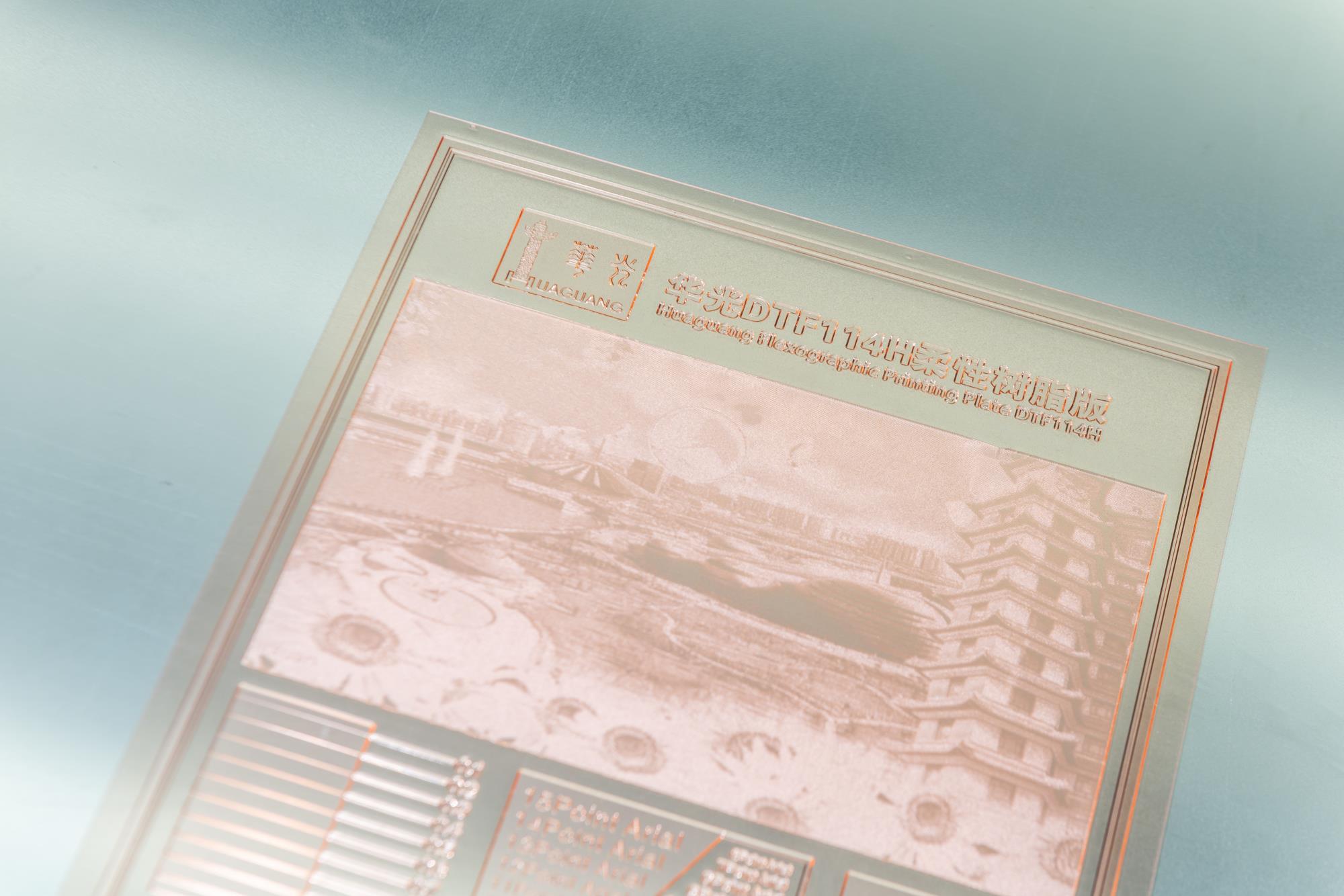

HD Digital Flexo Plates DTF Series
The whole series are suitable for water-based or alcohol-based inks, not suitable for oil-based inks and hydrocarbon solvents. UV inks need to be determined by printing tests.
Contact usThe whole series are suitable for water-based or alcohol-based inks, not suitable for oil-based inks and hydrocarbon solvents. UV inks need to be determined by printing tests.
Type | DTF170H | DTF170LS | DTF170M | DTF170MY | DTF114H |
Thickness/mm | 1.7 | 1.7 | 1.7 | 1.7 | 1.14 |
Hardness/ShoreA | 70-72 | 62-64 | 66-68 | 65-67 | 74-76 |
Relief deepth/mm | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 | 0.6-0.7 |
Dot reproduction/% | 1-99 | 1-99 | 1-99 | 1-99 | 1-99 |
Line/lpi | 150 | 150 | 150 | 150 | 150 |
isolated line/down to mm | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |

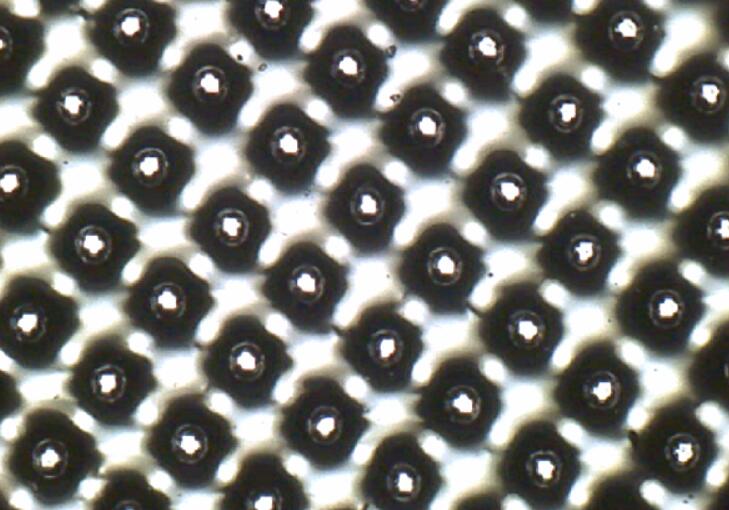

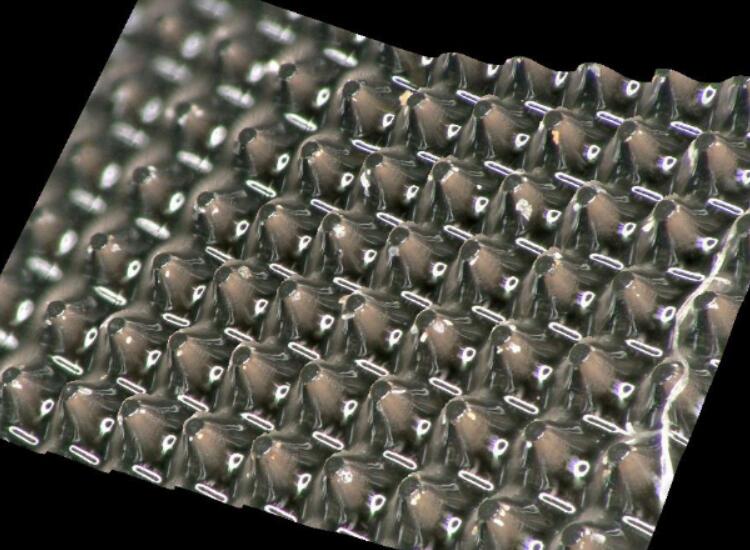

isolated Dot/down to mm | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
|
|
|
|
|
|
Back exposure/s | 15-21 | 25-40 | 15-21 | 20-40 | 35-70 |
Main exposure/min | 12--20 | 12--20 | 12--20 | 12--20 | 12--20 |
Rinsing/min | 5--7 | 5--7 | 5--7 | 5--5 | 5--7 |
Drying/h | 1.5-2 | 1.5-2 | 1.5-2 | 1，5-2 | 1.5-2 |
Detackifing/min | 5--8 | 5--8 | 5--8 | 5--8 | 5--8 |
Post exposure/min | 4--6 | 4--6 | 4--6 | 4--6 | 4--6 |
